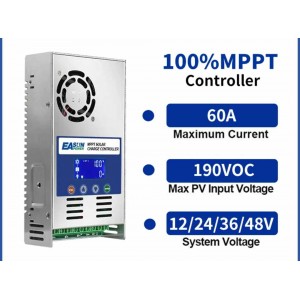

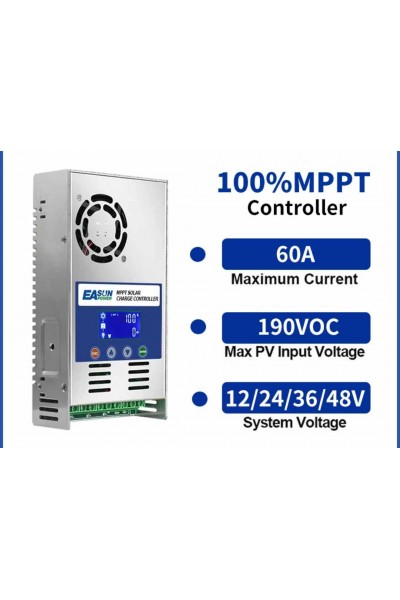

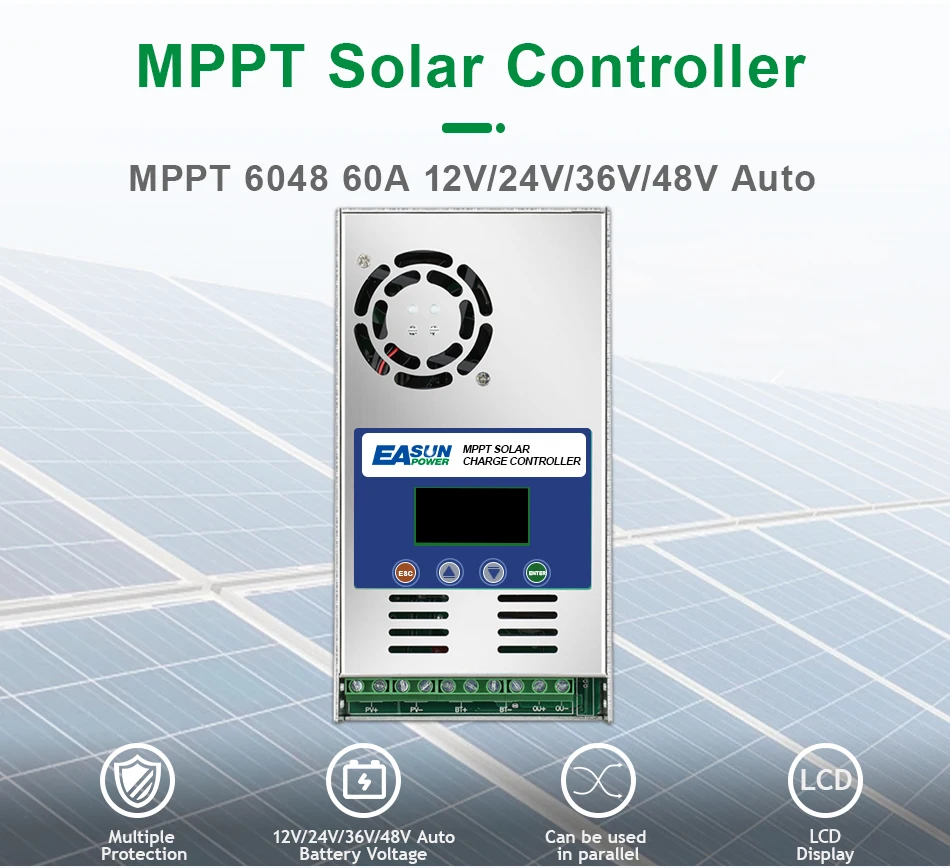

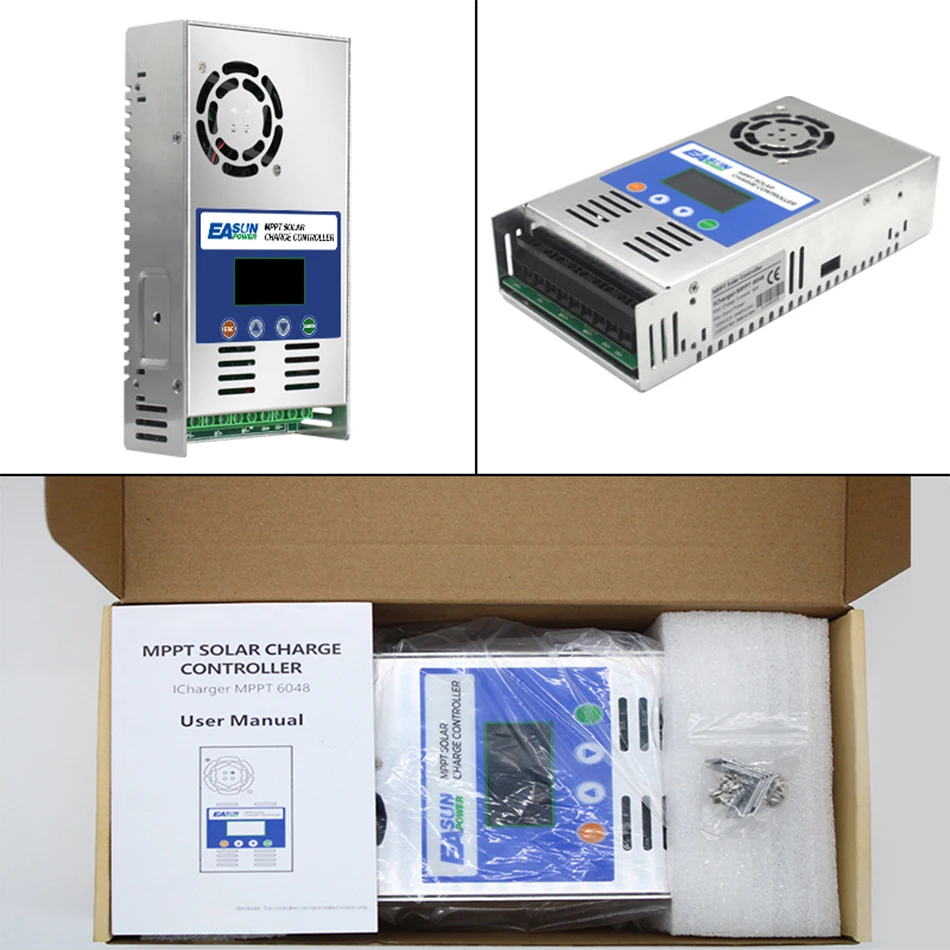

MPPT Контролер 60А
Код на продукт: MPPT Контролер 60А
Наличност: 1
|
Models |
ICharger MPPT 6048 |
||||||
|
Charging mode |
3-stage:constant current(MPPT),constant voltage,floating |
||||||
|
System Voltage |
12/24/36/48/Auto |
||||||
|
Max PV Input Power |
720W/12V; 1440W/24V; 2160W/36V; 2880W/48V |
||||||
|
Max PV Input Voltage |
190Voc |
||||||
|
Battery voltage automatic recognition |
12V system(DC8.7V-DC15.5V)；24V system(DC16V-DC31V) 36V system(DC33V-DC41V)；48 Vsystem(DC42V-DC64V) |
||||||
|
Over charging protection voltage |
12V system (16V)；24V system (32V)36V system(48V)；48V system(64V) |
||||||
|
Limited current protection |
61A |
||||||
|
Max efficiency |
≥98.1% |
||||||
|
PV utilization |
≥99% |
||||||
|
AutoTemperature Compensation |
-3mV/2V/ºC |
||||||
|
Protection Function |
|||||||
|
Temperature protection |
75℃ |
||||||
|
Fan-on temperature |
>45℃ |
||||||
|
Fan-off temperature |
<40℃ |
||||||
|
Properties |
|||||||
|

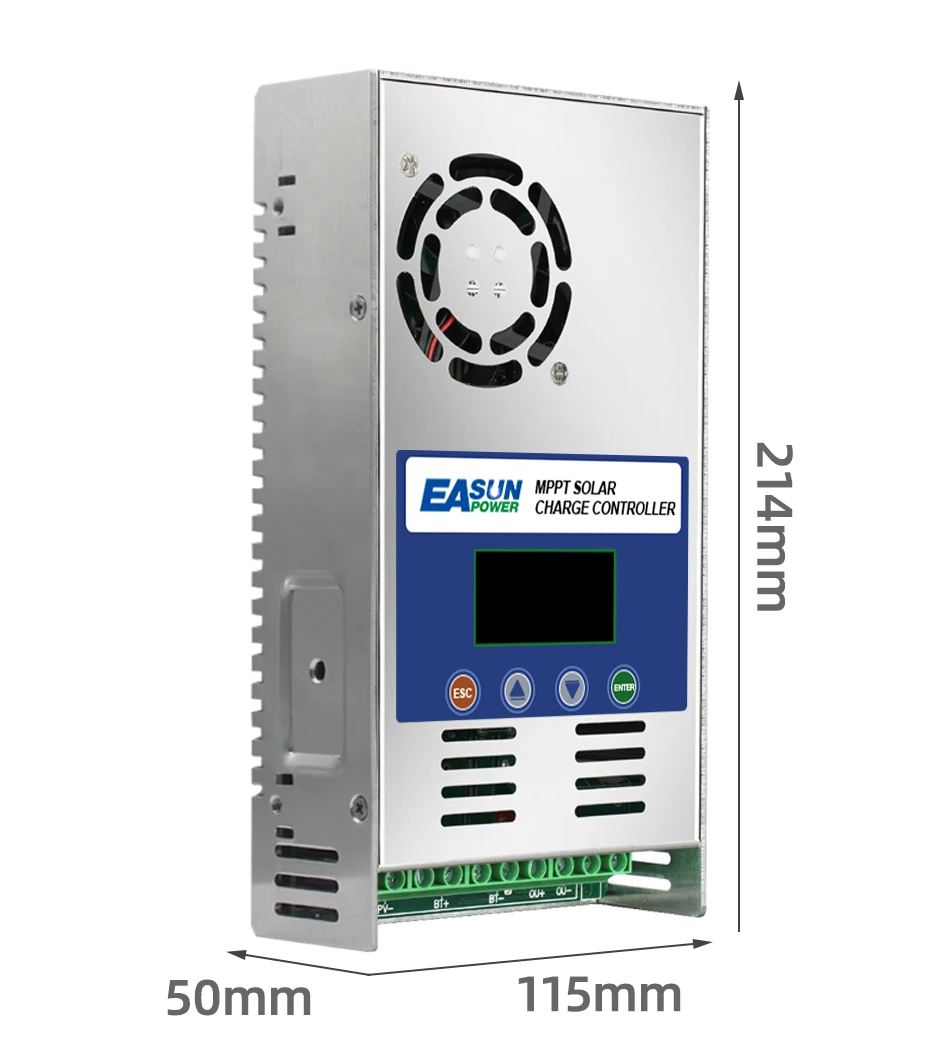

Size (mm) |
214x115x50 |
||||||
|
Netweight (Kg) |
1.1 |
||||||
|
Grossweight (Kg) |
1.2 |
||||||
|
Electro magnetic compatibility |
Accord to EN61000,EN55022,EN55024 |
||||||
|
Enclosure |
IP21 |
||||||
|
Environmental temperature |
-20℃~+55℃ |
||||||
|
Storage temperature |
-40℃~+75℃ |
||||||
|

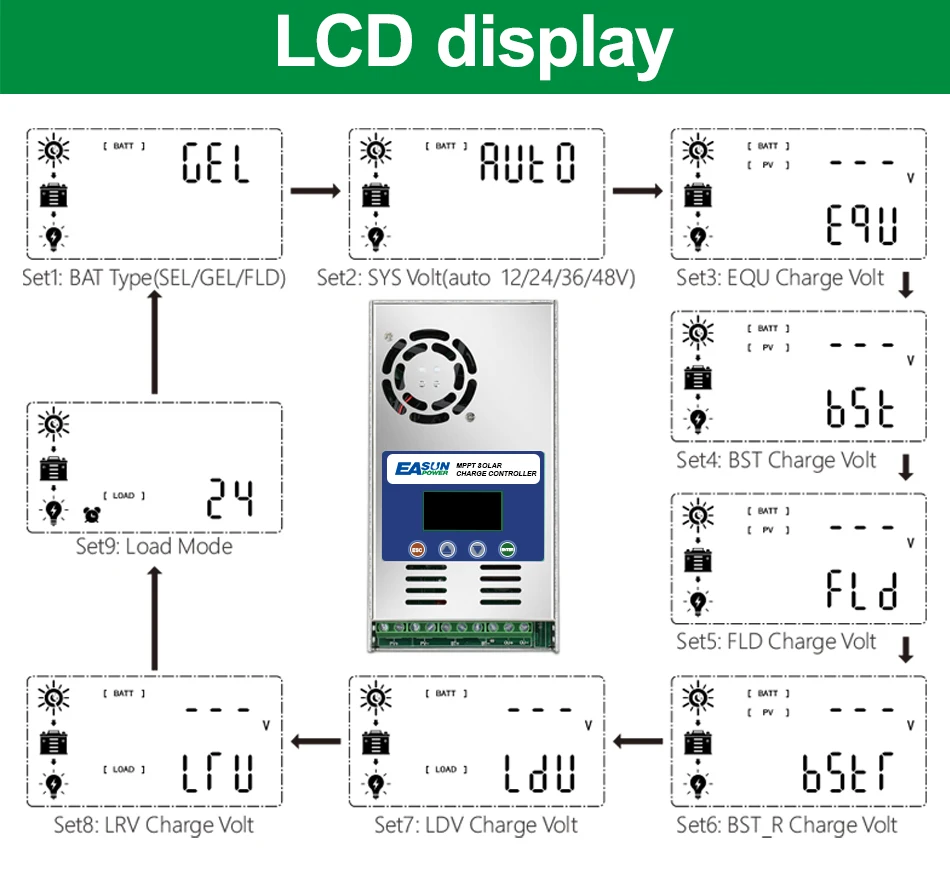

Battery Parameters |
|||||||
|
Battery Type |
System Volt |
EQU |
BST |
FLD |
BST_R |
LRV |
LDV |
|
GEL |
Auto |
14.2V |
14.2V |
13.8V |
13.2V |
12.6V |
12.0V |
|
SEL |
Auto |
14.6V |
14.4V |
13.8V |
13.2V |
12.6V |
12.0V |
|
FLD |
Auto |
14.8V |
14.6V |
13.8V |
13.2V |
12.6V |
12.0V |
|
USE |
Auto/12/24/36/48V |
Definedbyusers |
|
|
|
|
|
|
LI |
12/24/36/48V |
--- |
Defined byusers |
--- |
--- |
Defined byusers |
|
|
The maximum PV input power(The total power rated of PV can’t beover this watt thatwill break the controller.) |
12V system(360W) |
12V system(480W) |
12V system(600W) |
12V system(720W) |
|||
|
24V system(720W) |
24V system(960W) |
24V system(1200W) |
24V system(1440W) |
||||
|
36V system(1080W) |
36V system(1400W) |
36V system(1800W) |
36V system(2100W) |
||||
|
48V system(1440W) |
48V system(1700W) |
48V system(2200W) |
48V system(2800W) |
||||
EASUN MPPT Solar Controller 80A 100A PV Input 150V 3 Stage Solar Charge Regulator For 12V 24V 36V 48V Lead Acid Lithium lifepo4 RJ485
Features:
80A MPPT solar charge controller· MPPT technology· 3-stage charging optimizes battery performance· Battery OVP、Battery LDV、Solar OVP、Overcharge、over-temperature、Reverse Polarity protection· Suitable for battery types such as sealed lead acid, vented gel and lithium battery, etc· Automatic battery voltage detection for 12V/24V/36V/48V· Easy to be mounted
Warning and Caution:

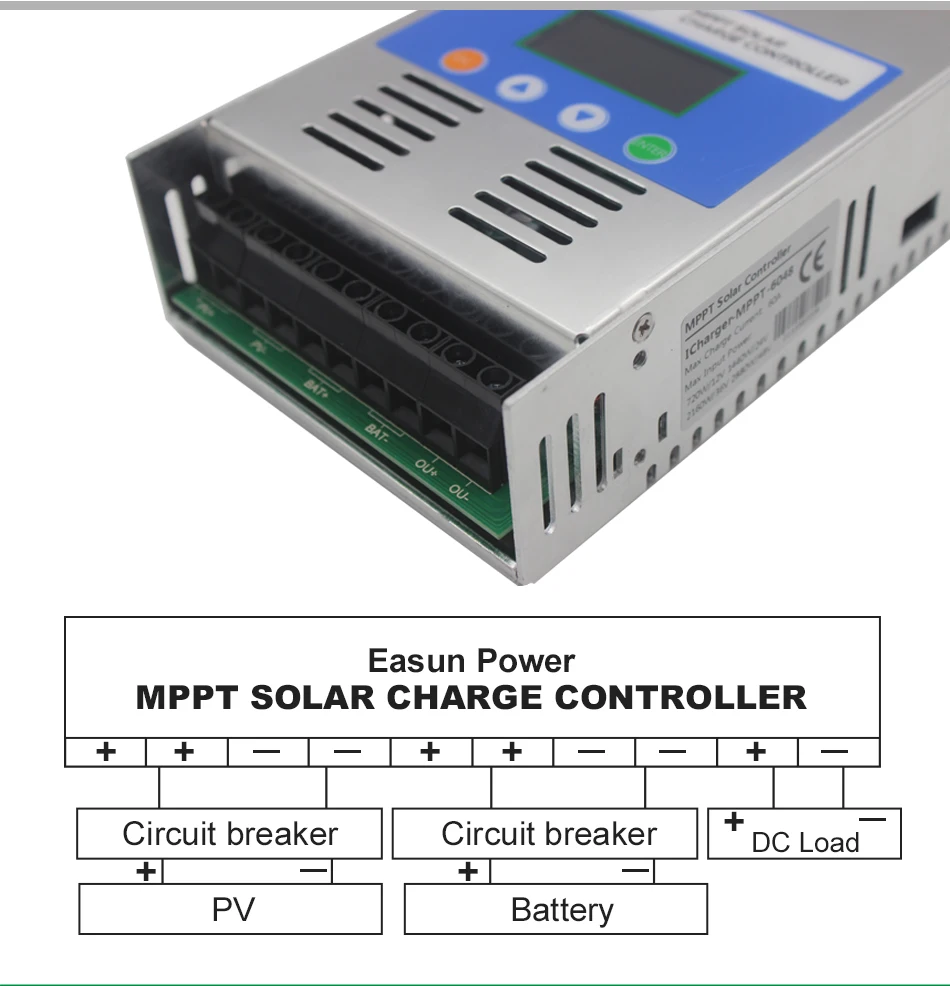

Be aware that only qualified professionals could install these controllers. Please read all manuals before installing them.1)Keep controller away from water. Dont use wet towel to wipe controller.2)Keep wiring correct, dont reverse wiring. Please pay attention to terminal wiring sequence.3)Keep controller in an environmental temperature from - 20℃~+55℃. Avoid direct sunlight.4)Keep good heat dissipation.5)Use the pure copper wires and connect all polarity correctly.6)Please don’t set any parameters if you are not professional since the controller can work fine in default condition except lithium battery.
|
Item |
ICharger MPPT 8048 |
ICharger MPPT 10048 |
|
ChargingMode |
3-stage:ConstantCurrent(MPPT),ConstantVoltage,Floating |
|
|
SystemVoltage |
12/24/36/48/Auto |
|
|
MaxPVInputPower |
1200W/12V;2400W/24V 3600W/36V;4800W/48V |
1500W/12V;3000W/24V 4500W/36V;6000W/48V |
|
MaxPVInput Voltage |
150Voc |
|
|
BatteryVoltageAutomaticRecognition |
12VSystem(DC8.7V-DC15.5V),24VSystem(DC16V-DC31V) 36VSystem(DC33V-DC41V),48VSystem(DC42V-DC64V) |
|
|
Overcharging ProtectionVoltage |
12VSystem(16V),24VSystem(32V)36VSystem(48V),48VSystem(64V) |
|
|
LimitedCurrent Protection |
80A |
100A |
|
MaxEfficiency |
≥98.1% |
|
|
PVUtilization |
≥99% |
|
|
AutoTemperature Compensation |
-3mV/2V/ºC |
|
|
ProtectionFunction |
||
|
TemperatureProtection |
80℃ |
|
|
Fan-onTemperature |
>45℃ |
|
|
Fan-offTemperature |
<40℃ |
|
|
Properties |
||
|
Size(mm) |
252*201*80.3 |
|
|
NetWeight(Kg) |
2.28 |
2.49 |
|
Electromagnetic Compatibility |
AccordtoEN61000,EN55022,EN55024 |
|
|
Enclosure |
IP21 |
|
|
EnvironmentalTemperature |
-20℃~+55℃ |
|
|
StorageTemperature |
-40℃~+75℃ |
|
