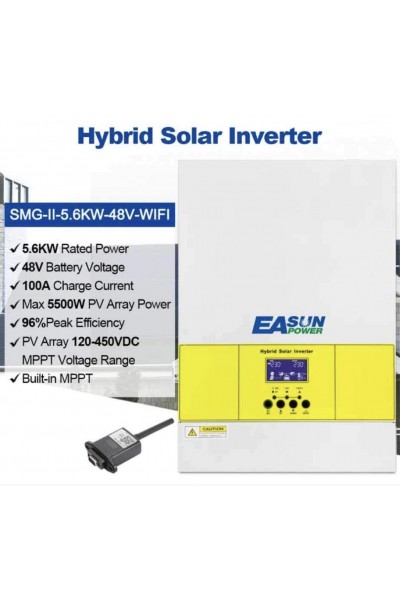

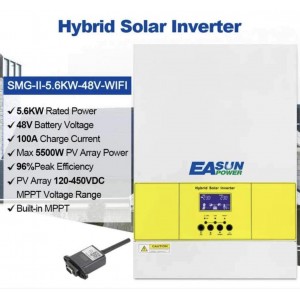

Хибриден Инвертор 5.6 Kw

0 Отзива |Напишете отзив

Код на продукт: Хибриден Инвертор 5.6 Kw

Наличност: 1

Цена:

1,450.00лв.

Количество:

В любимиВ любими
СравниСравни

Фирмата не е регистрирана по ДДС и посочената цена е крайна.

Описание
Отзиви (0)

Description:

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

1.pure sine wave soalr inverter

2.Output power factor 1

3.High PV input voltage range

4.Built-in MPPT soalr controller5.Battery equalization function to optimize

6.Battery performance and extend lifecycle

7.Inverter running without barrery

8.Built-in anti-dusk kit for harsh environment

9.WIFI-GPRS remote monitoring(Optional)

10.Detachable LCD(Optional)11.Parallel function

12.If the parallel machine needs to be connected to the same 48V battery

MODEL	Isolar SMG II 3.6KW	Isolar SMG II 5.6KW
CAPACITY	3.6KVA/3.6KW	5.6KVA/5.6KW
Parallel Capability	NO	YES/MAX 9PCS
INPUT
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC(For personal Computer); 90-280VAC(For Home Appliances)
Frequency	50/60Hz(Auto sensing)
OUTPUT
Nominal Voltage	220/230VAC±5%
Surge Power	7000VA	11000VA
Frequency	50/60Hz
Waveform	Pure Sine wave
Transfer Time	10Ms(For personal Computer);20Ms(For Home Appliances)
Peak Efficiency(PV to INV)	96%
Peak Efficiency(Battery to INV)	93%
Overload Protection	5s@>=150%load;10s@110%-150%load
Crest Factor	3:1
Admissible Power Factor	0.6-1(inductive or capacitive)
BATTERY
Battery Voltage	24VDC	48VDC
Floating harge Voltage	27VDC	54VDC
Over Charge Protection	33VDC	63VDC
Charging Method	CC/CV
Solar Charger&AC Charger
Solar Charger TYPE	MPPT
Max.PV Array power	4000W	5500W
Max.PV ArrayOpen Circuit Voltage	500VDC
PV Array MPPT Voltage Range	120VDC-450VDC
Max.Solar lnput Current	15A	18A
Max.Solar Charge Current	100A	100A
Max.AC Charge Current	60A	60A
Max.Charge Current	100	100A
PHYSICAL
Dimensions,DxWxH(mm)	482x290x113
Package Dimensions,DxWxH(mm)	565x380x190
Net Weight(Kgs)	9	10
Communication lnterface	USB/RS232/Dry-contact
ENVIRONMENT
Operating Temperature Range	-10℃to50℃
Storage temperature	-15℃to60℃
Humidity	5%to95%Relative Humidity(Non-condensing)
