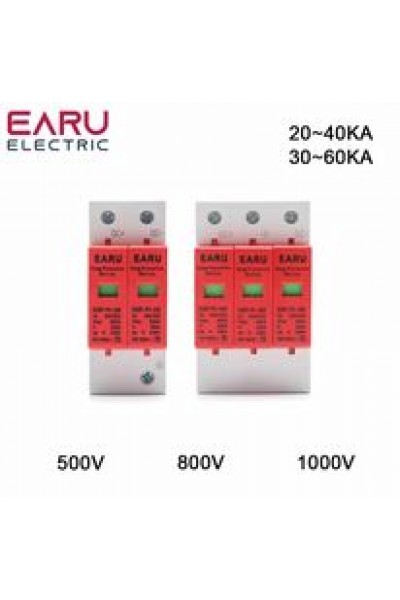

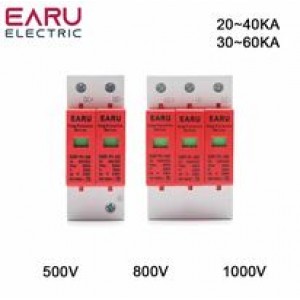

Electric ratings: DC 500V/800V/1000V
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage
Number of poles: 2
Electric ratings:DC 500V/800V/1000V
20-40KA/30-60KA
UP<2.2KV
|
Nominal Voltage
|
UN
|
500/800/1000V DC
|
|
Max.continuous d.c. voltage
|
Uc pv
|
500/800/1000V DC
|
|
Protection mode
|
|
CM/DM
|
|
Maximum discharge current (8/20μs)
|
Imax
|
40kA/60KA
|
|
Nominal discharge current (8/20μs)
|
In
|
20kA/30KA
|
|
Voltage protective level CM/DM at In
|
Up
|
≤2.2kV
|
|
Isolation resistance
|
Risol
|
>102MΩ
|
|
Response time
|
tA
|
≤25ns
|
|
I/O Connections
|
By screw terminal:10-35mm2
|
|
By connection bus
|
|

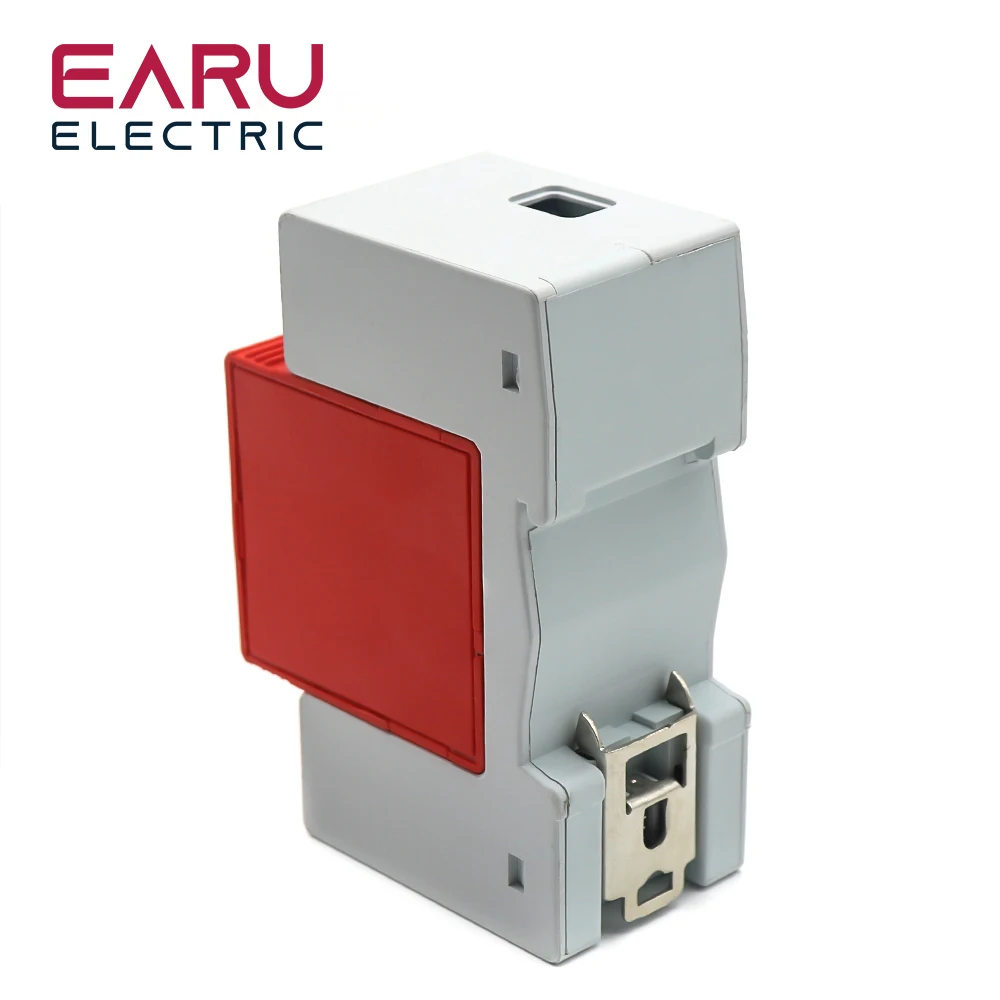

Mounting
|
Symmetrical rail (EN50022/DIN46277-3)
|
|
Operation temperature range
|
-40c~+85c
|
|
Degree of protection
|
IP20
|
|
Housing material
|
UL94V0
|
|
Disconnection indicator
|
Mechanical indicator
|
|
Remote control contact
|
No
|
|
Color
|
Gray
|
|
Isolation resistance
|
By screw terminal:10-35mm2
|
|
By connection bus
|
|
Response time
|
Symmetrical rail (EN50022/DIN46277-3)
|
