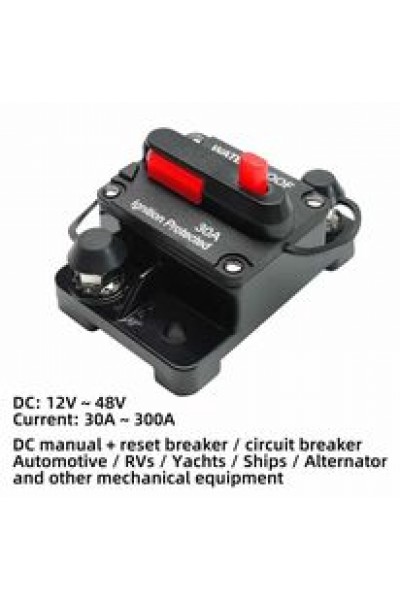

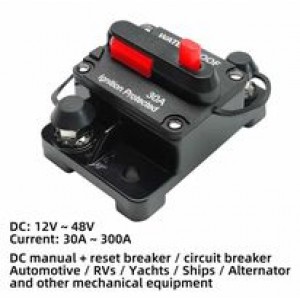

Автоматичен предпазител DC 12 - 48 V

Circuit Breaker Power Protect Fuse Trolling with Manual Reset Waterproof Car Boat Manual
DC: 12V-48V
Current: 30A 40A 50A 60A 80A 90A 100A 120A 150A 200A 250A 300A

Specifications:

1. Storage temperature: -34 ° C-149 ° C

2. Operating temperature: -32 ° C to 82 ° C

3. Compatible with all 12, 24, 36, 48 Volt systems.

4. Current 30A 40A 50A 60A 80A 100A 150A 200A 250A 300A circuit breaker available

5. Protects your trolling motor from electrical damage, prevents excessive current and stops power surges from damaging Amps, Save your money to replacing fuse break.

6. Manual reset button, manual control and easy to operate with manual reset arm, also can be used as a Kill Switch.

7. Surface Mount, mount on panel or firewall. Water resistant housing, protective stud insulator included, splash & dust Proof fuse car.

8. Providing protection in overload or short circuit conditions for car audio/video system, Boat, trucks, buses, RV's, ATV Winches and marine and DC sound amplifier system, manual reset circuit breaker.

How to use: Working method:
1. Open circuit protection: When the current reaches the disconnection value,
the long handle automatically pops open and cuts off the power.
Generally, the short-circuit situation jumps off.
After the fault is removed, press the long handle back to the original.
Bit can form a pathway.
2. Manual power off: We need to disconnect the circuit during the modification,
and directly press the oval red button on the fuse.
At this time, the long handle automatically pops open to cut off the power.
Connect it as above, then press the long handle back to the original position.
